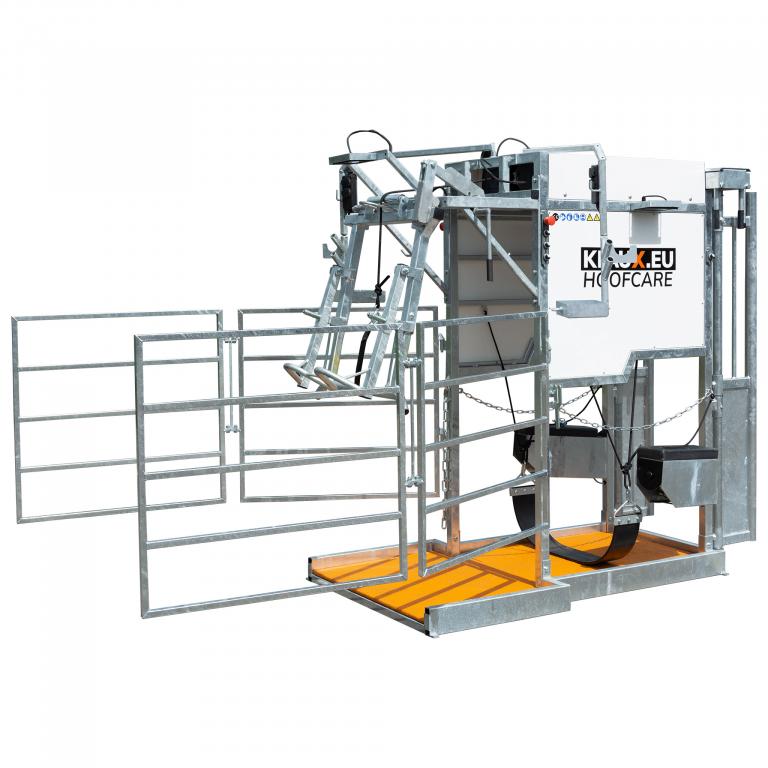

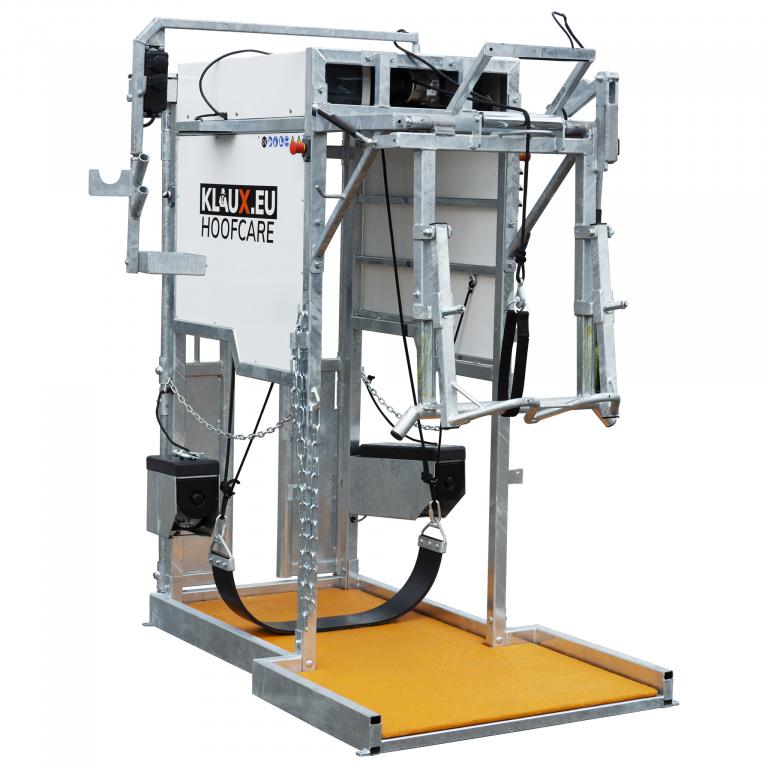

The Klaux Platinum is the standard model for the farmer for efficient and ergonomic hoof care and hoof treatment. The fully electric hoof trimming chute makes work much easier and therefore saves a lot of time. Work safety is a top priority with every Klaux hoof trimming chute. The frame-integrated controls and the floor with anti-slip coating ensure a high level of user-friendliness for the hoof trimmer and comfort for the animal. The Platinum can be equipped with many helpful accessories. Talk to us about the possible upgrades.
Features:
- Fully galvanized steel
- Fully electric
- Double mounting bracket for the rear legs
- All-round LED lighting
- Suitable for large cows due to the height of 180 cm
- Can be extended with individual options
- Safe operation due to low current (24 volts)
- Centrally positioned emergency stop switches on both sides for the entire system including all electrical devices. The lighting remains on!
- Closed side walls and closed ceiling for quiet entry and exit of the cow
- Non-porous floor with anti-slip coating for the animal to stand securely
- Catch door with automatic locking mechanism
- Electric winches for easy lifting of the front and rear legs
- Electric winch for the belly strap
- 2 hinged driving fences: 1 m wide x 1.30 m high
- Attachment for a lifting eye
- Wall socket
- Tool holder rotatable over the entire stand
The rear gate with integrated rear leg support can be operated manually. The rear gate is opened by pressing the lever and closed by pushing the lever down.
The Platinum model has 3 powerful LED headlights that ensure optimum visibility in all lighting conditions.
The swivel tool holder can be rotated over the entire stand. It offers space for angle grinders, work materials and tools. All materials are always to hand.
The side walls protect the cow from distraction and ensure a quiet stand.
The automatic catch doors can be opened easily with a flick of the wrist. After the cow presses its shoulders against the door from the inside, it locks automatically.
The electric front leg winches automatically bring the cow's legs into the correct position on the front leg rest so that the hooves are immediately ready for trimming.
The non-porous floor with anti-slip coating prevents the penetration of bacteria and is easy to clean and disinfect. The anti-slip coating gives the cow a secure stand.
Two floating grids are hooked into the stall and can be moved freely. The hoof trimmer's freedom of movement is not restricted.
Two central emergency-stop-switches offer optimum protection. The entire electrical system, including all devices, is switched off at the touch of a button. The light remains on for safety.
Product dimensions:
- Internal dimensions: 165 cm long x 70 cm wide x 180 cm high
- External dimensions: 213 cm long x 120 cm wide x 218 cm high
- Weight: 650 kg
Technical features:
- Voltage: 230 V
Certified according to NEN 3140 legislation and built in accordance with EU machinery directives.
Warranty is 1 year from date of delivery.
Price per piece. Availability on request. Please contact us if you have any questions. We are at your disposal.
