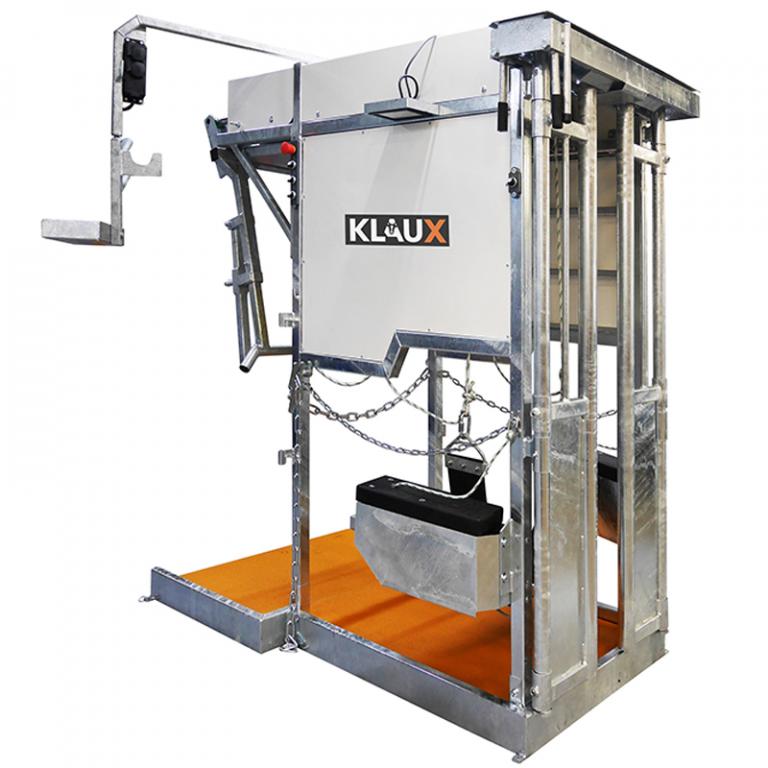

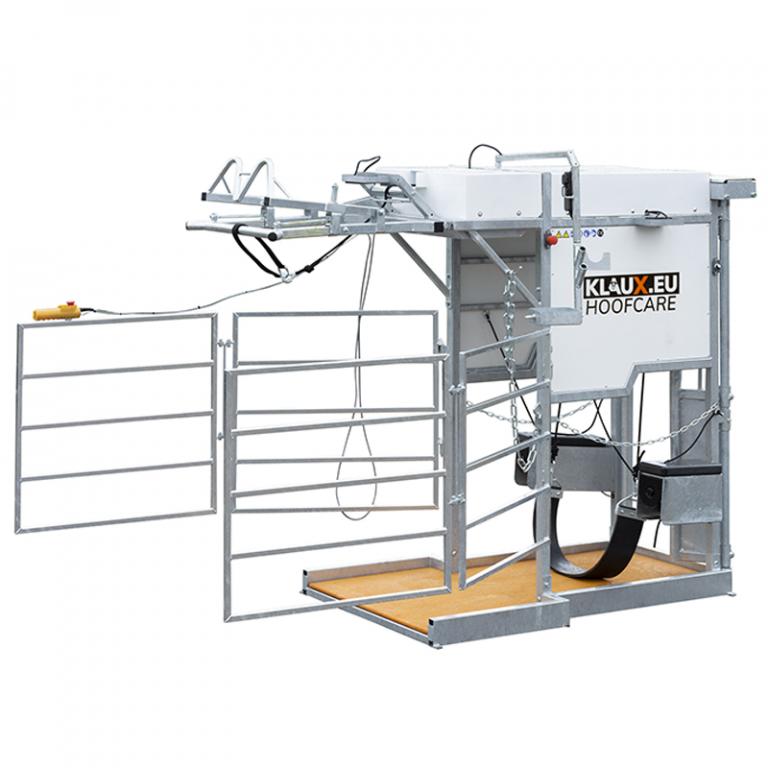

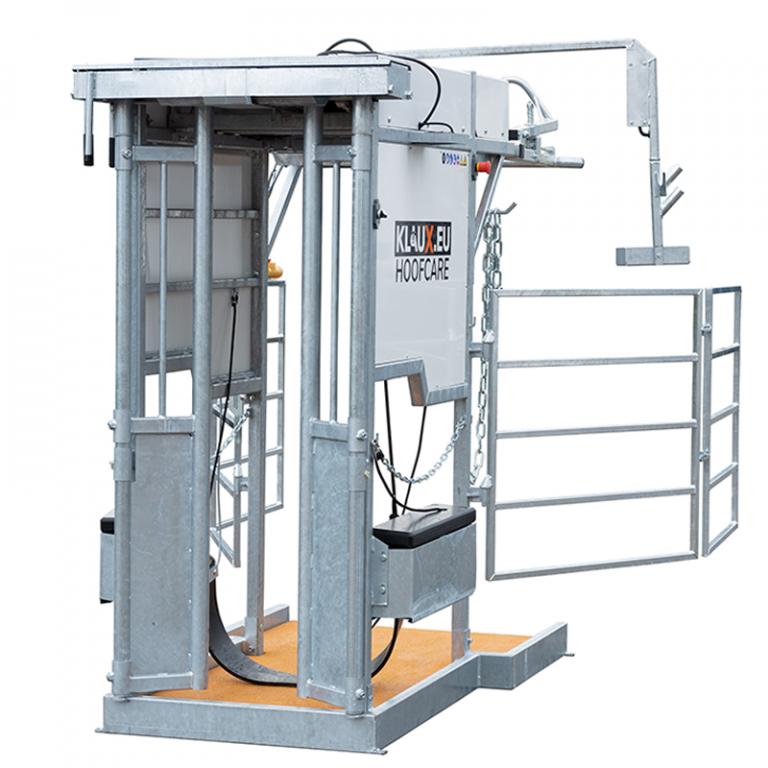

The Klaux Platinum Hydro is the top model for the farmer for efficient and ergonomic hoof care and hoof treatment. Thanks to its hydraulic system, the Platinum Hydro makes work much easier while at the same time ensuring work safety. The hydraulic device for automatic opening and closing of the tailgate can be conveniently controlled by remote control so that the cows can be driven in and restrained calmly.

Features:

• Fully galvanised steel
• Fully electric and semi-hydraulic
• Double mounting bracket for the rear legs
• Tailgate can be operated and controlled remotely
• LED lighting all round
• Suitable for large cows thanks to the height of 180 cm
• Can be extended with customised options
• Safe operation due to low current (24 volts)
• Centrally positioned emergency stop switches on both sides for the entire system including all electrical devices. The lighting remains on!
• Closed side walls and closed ceiling for quiet entry and exit of the cow
• Non-porous floor with anti-slip coating for the animal to stand safely
• Catch door with automatic locking mechanism
• Electric winches for easy lifting of the front and rear legs
• Electric winch for the belly strap
• 2 hinged driving fences: 1 m wide x 1.30 m high
• Attachment for a lifting eye
• Wall socket
• Tool holder that can be rotated over the entire stand

The tailgate with integrated rear leg support can be operated manually or hydraulically using the wired remote control. The tailgate is opened by pressing the lever and closed by pressing the lever down.

The Platinum model has 3 powerful LED headlights that ensure optimum visibility in all lighting conditions.

The swivelling tool holder can be rotated across the entire stand. It offers space for angle grinders, work materials and tools. All materials are therefore always to hand.

The permanently installed side walls protect the cow from distraction and ensure a quiet stall.

The automatic catch doors can be opened easily with a flick of the wrist. After the cow presses its shoulders against the door from the inside, it locks automatically.

The electric front leg winches automatically bring the cow's legs into the correct position on the front leg rest so that the hooves are immediately ready for processing.

The non-porous floor with anti-slip coating prevents the penetration of bacteria and is easy to clean and disinfect. The anti-slip coating gives the cow a secure hold.

Two floating grids are hooked into the stall and can be moved freely. The hoof trimmer's freedom of movement is not restricted.

Two central emergency stop switches provide optimum protection. The entire electrical system, including all devices, is switched off at the touch of a button. The light remains switched on for safety.

Product dimensions:

• Internal dimensions: 165 cm long x 70 cm wide x 180 cm high
• External dimensions: 213 cm long x 120 cm wide x 218 cm high
• Weight: 650 kg

Technical features:

• Voltage: 230 V

Certified according to NEN 3140 legislation and built in accordance with EU machinery directives.

Warranty is 1 year from date of delivery.

Price per piece. Availability on request. Please contact us if you have any questions. We are at your disposal.
