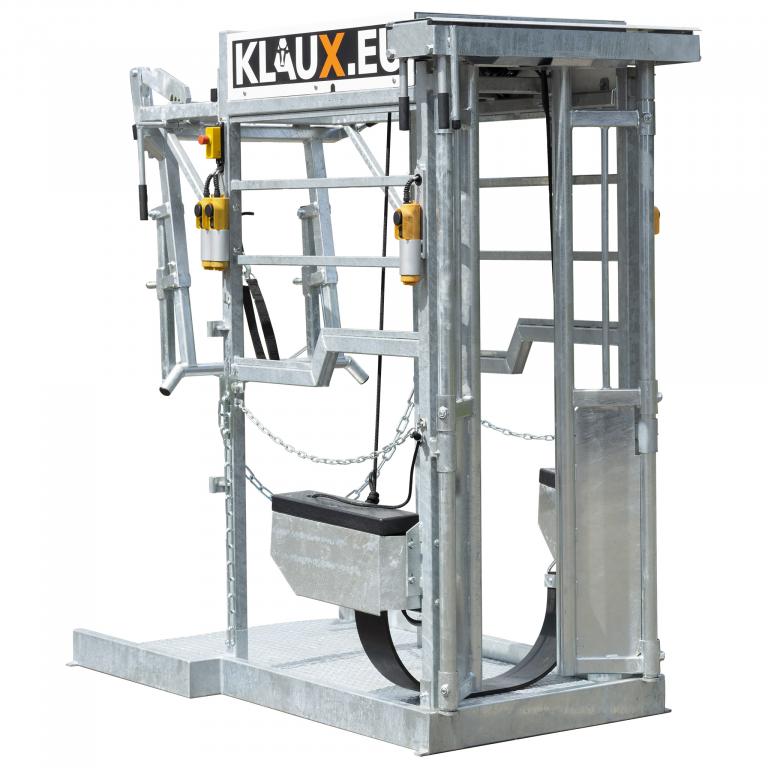

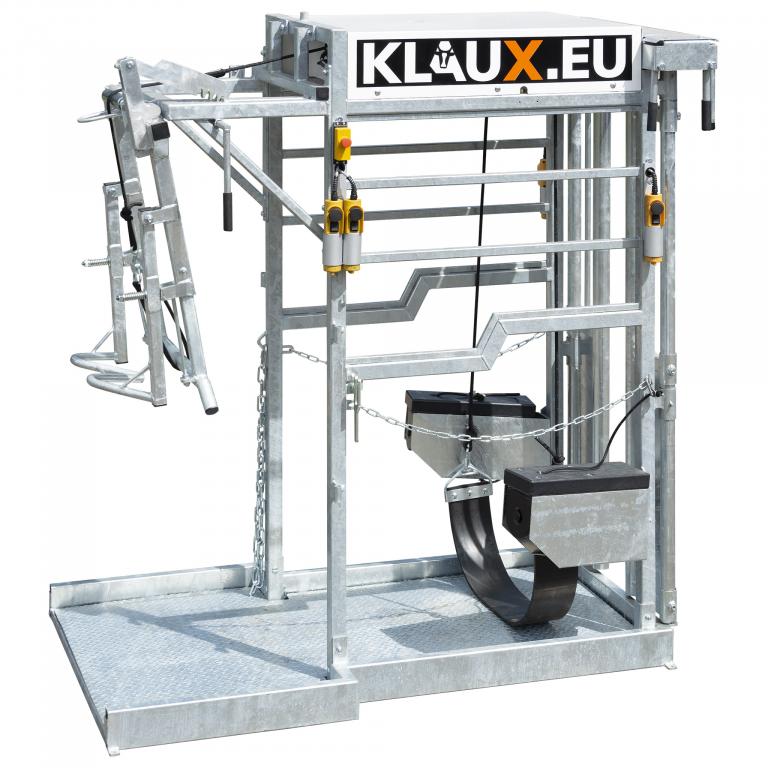

The Klaux Silver is the entry-level model for the farmer for efficient and ergonomic hoof care and hoof treatment. The fully electric hoof trimming chute makes work much easier and therefore saves a lot of time. Work safety is a top priority with every Klaux hoof trimming chute. The Silver can be equipped with many helpful accessories. Please contact us about the possible upgrades.
Features:
- Fully galvanized steel
- Fully electric
- Double mounting bracket for the hind legs
- Suitable for large cows due to the height of 180 cm
- Can be extended with individual options
- Safe operation due to low current (24 volts)
- Centrally positioned emergency stop switches on both sides
- Non-porous floor
- Catch door with automatic locking
- Electric winches for easy lifting of the front and rear legs
- Electric winch for the belly strap
- 2 hinged driving grids: 1 m wide x 1.30 m high
- Attachment for a lifting eye
The rear flap with integrated rear leg support can be operated manually. The tailgate is opened by pressing the lever and closed by pushing the lever down.
The automatic front catch doors can be opened easily with a single movement. After the cow presses its shoulders against the door from the inside, the door locks automatically.
The electric front leg winches automatically bring the cow's legs into the correct position on the front leg rest so that the hooves are immediately ready for trimming.
The non-porous floor prevents the penetration of bacteria and is easy to clean and disinfect.
Included in the scope of delivery are 2 x 2 drift fences which are hooked onto the stand and can be moved freely. The hoof trimmer's freedom of movement is not restricted.
To ensure the hoof trimmer's safety in every situation, there are two central emergency stop switches on both sides of the Silver hoof trimming crush. The complete system can be switched off with the touch of a button.
Product dimensions:
- Internal dimensions: 165 cm long x 70 cm wide x 180 cm high
- External dimensions: 213 cm long x 120 cm wide x 218 cm high
- Weight: 540 kg
Technical features:
- Voltage: 230 V
Certified according to NEN 3140 legislation and built according to EU machinery directives.
Warranty is 1 year from date of delivery.
Price per piece. Availability on request. Please contact us if you have any questions. We are at your disposal.
