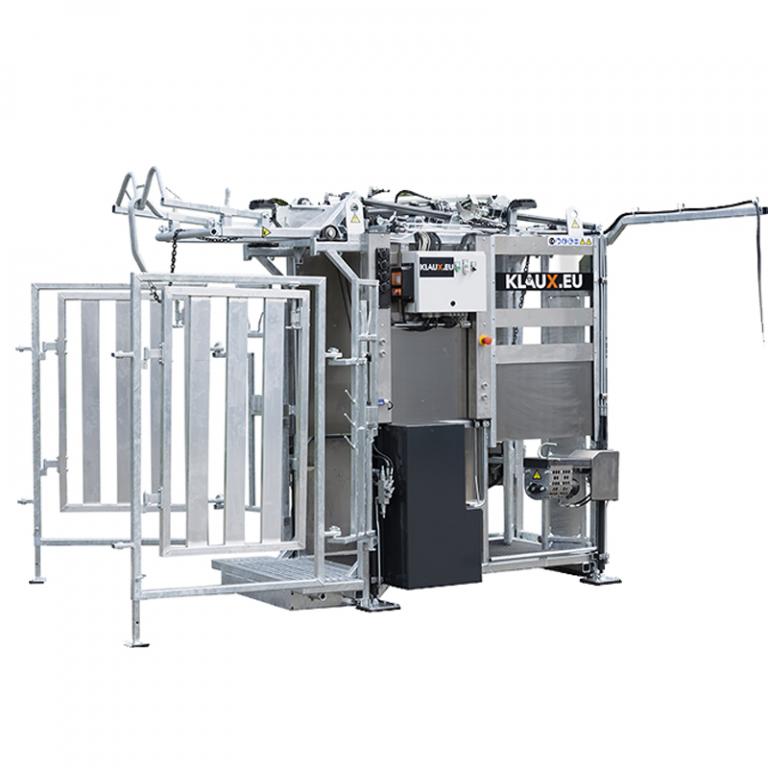

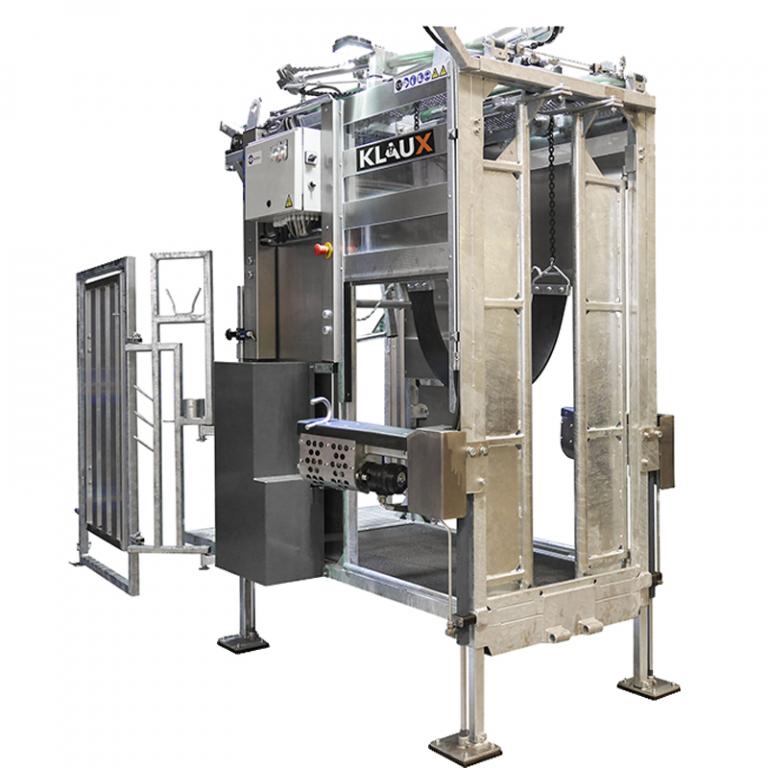

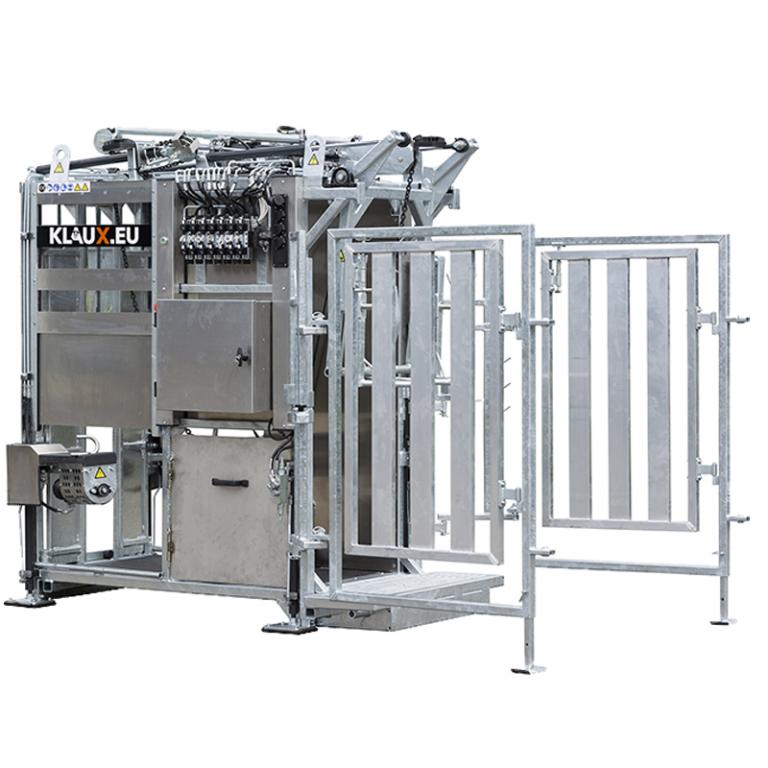

The Klaux Titanium Pro is the fully hydraulic top model with 380-volt drive for professional hoof trimmers and specialised cattle practitioners for efficient and ergonomic hoof care and hoof treatment. The wireless operation via remote control offers maximum efficiency, comfort and safety.

Features:

• Fully galvanised steel
• Fully hydraulic
• Double mounting bracket for the rear legs
• LED lighting all round
• Can be positioned either with lifting eye or wheel set
• Can be raised by 45 cm with adjustable automatic stop
• Can be upgraded with customised options
• High work safety thanks to low-current control
• Catch door, tailgate, belly strap and rear leg winch can be operated with wireless remote control
• Flat, barrier-free access for the cow
• Centrally positioned emergency stop switches on both sides for the entire system including all electrical devices. The lights stay on!
• Hydraulic front and rear leg winch
• Hydraulic belly belt lifting system
• Hydraulic tailgate with safety bar
• Rubberised floor
• 2 hinged drive grids with dry door: 1 m wide x 1.30 m high
• Numerous sockets
• Tool holder that can be rotated over the entire stand
• Manure grid at the rear
• Illuminated and heatable material box

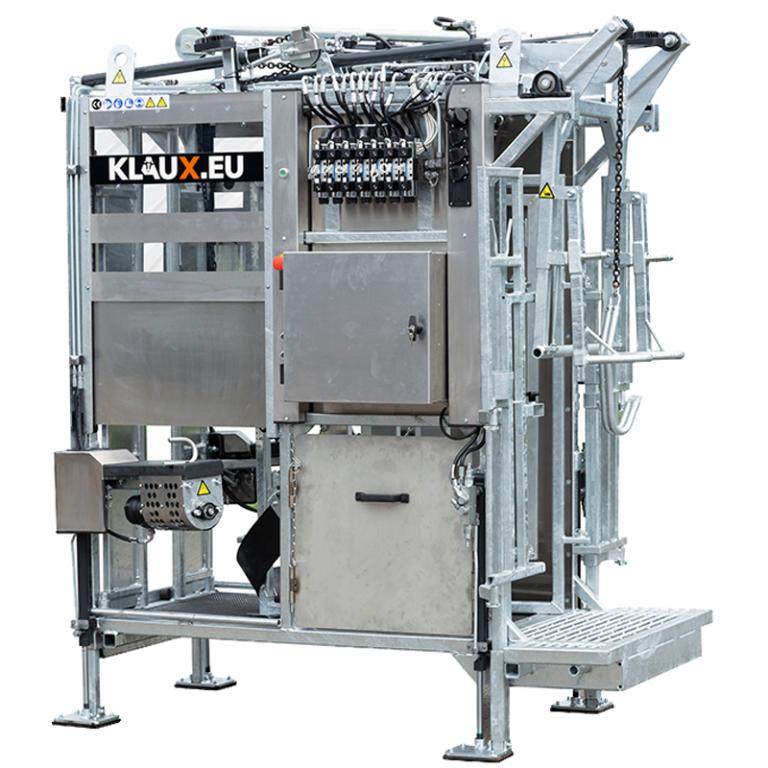

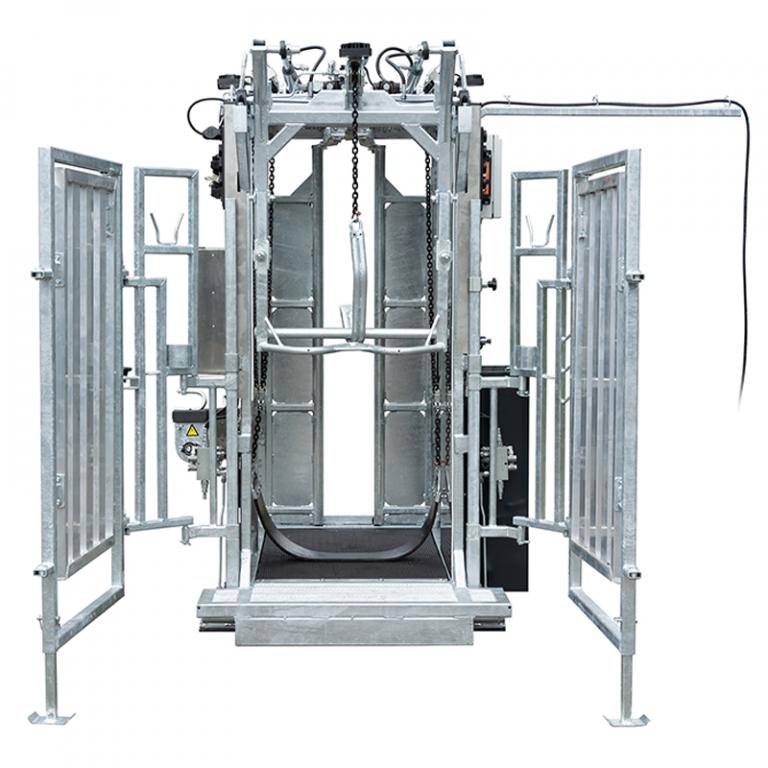

• Optionally with openable drying rack door on the left side             (see picture 3&4)

The hydraulic tailgate with rear leg hook is opened and closed using the remote control. The rear leg hook can also be raised and lowered using the remote control.

The Titanium Pro model has 3 powerful LED headlights that ensure optimum visibility in all light conditions. The modes are automatic on/off or manual.

The power cable guide is plugged into the stand, where the cable is hooked in. This keeps the cable out of the working area at all times without causing interference.

Movable side panels protect the cow from distraction.

The swivelling tool holder can be rotated across the entire stand. It provides space for angle grinders, work materials and tools. All materials are always within easy reach.

The hydraulic front leg winches automatically bring the cow's legs into the correct position on the front leg rest so that the hooves are immediately ready for processing.

The Titanium Pro has hydraulically adjustable legs and can therefore be adapted to the ergonomic working height of the hoof trimmer.

The floating drive gates with wicket door are permanently mounted on the stand and can be moved flexibly. The number of doors can be extended as required. The wicket doors allow short distances to both sides. There are 3 drum holders, 1 angle grinder holder and 1 claw block holder integrated into each of the moving grids.

Two central emergency stop switches offer optimum protection. The entire electrical system, including all devices, switches off at the touch of a button. The lights remain on for safety.

The optionally available wheel set can simply be inserted into the holder provided. The stand is then simply pushed to the workstation.

Product dimensions:

• Internal dimensions: 73 cm wide x 168 cm high
• External dimensions: 225 cm long x 145 cm wide x 218 cm high
• Weight: 1100 kg

Technical features:

• Voltage: 380 V
• Hydraulic system with stainless steel lines
• Lifting height: 45 cm
• Working height: max. 35 cm

Certified according to NEN 3140 legislation and built in accordance with EU machinery directives.

Warranty is 1 year from date of delivery.

Price per piece. Availability on request. Please contact us if you have any questions. We are at your disposal.
